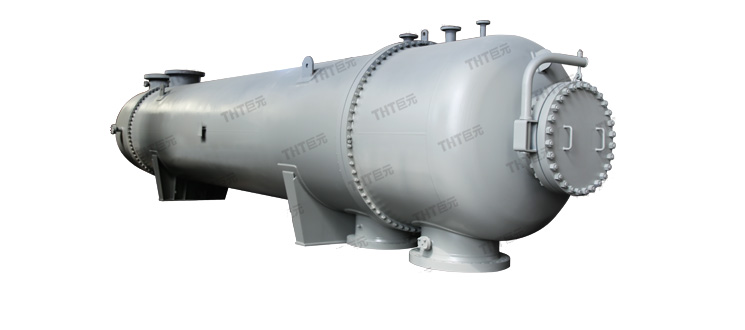

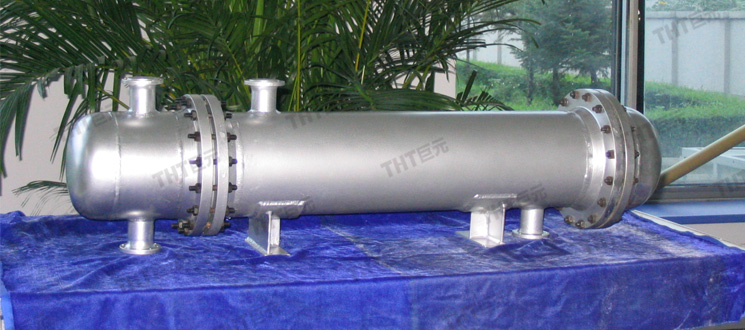

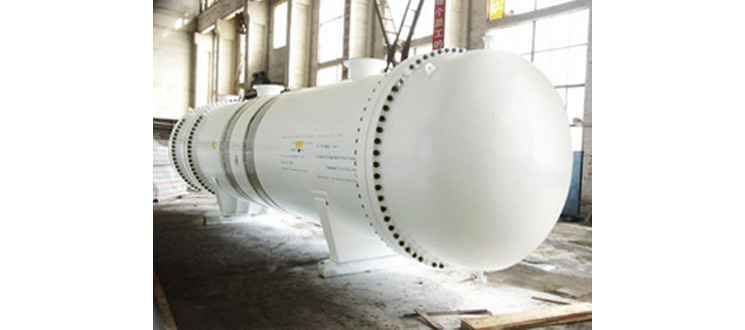

Shell and Tube heat exchanger
  • Shell and Tube heat exchanger

  • Shell and Tube heat exchanger

  • Shell and Tube heat exchanger


Share >

Product Description
Shell and tube heat exchanger is an important equipment in the process of oil refining, chemical industry, electric power and other industries. It is not only the main equipment in the process, but also the main means to reduce energy consumption and cost. Therefore, the technology level of shell and tube heat exchanger is one of the main indicators of the advanced degree of refinery.

Technical Parameter
Maximum design pressure: 10Mpa
Maximum design temperature: 650℃
Maximum shell diameter: 2600mm
Maximum heat transfer area of single machine: 4000m²
Heat exchange tube specification: φ10~ φ70mm
Length of heat exchange tube: 100~12000mm

Product Features
High temperature and high pressure, rugged , reliable and durable; Design, manufacturing and application has a long history, mature manufacturing technology and operating maintenance technology; Wide selection of materials, a large range of applications.

Product Superiorities
As a leading manufacturer of heat exchange equipment in China, THT is a manufacturing base for shell and tube heat exchangers (with a capacity of 10,000 tons).The company holds the design license and manufacturing license of special equipment (pressure vessel D1, D2) of the People's Republic of China, and has more than 100 specifications of shell and tube heat exchanger series products, which are suitable for different fields and different industries.
