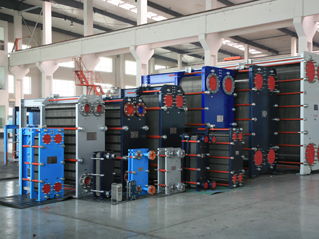

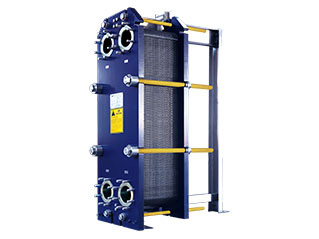

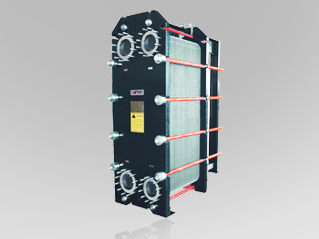

THT plate heat exchanger is a heat exchange equipment with high heat transfer efficiency, compact structure, flexible operation, easy maintenance and cleaning and other characteristics, mainly used for heating, cooling, evaporation, condensation, sterilization, heat recovery and other occasions, is one of the most efficient and energy-saving heat exchange equipment.

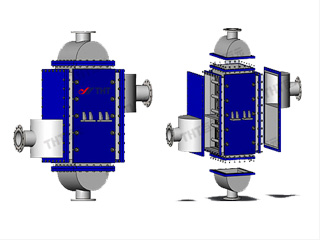

Plate and frame heat exchanger is a patented product of THT, belonging to a type of welded plate heat exchanger. It is composed of plate pair, side plate, clamping plate, column, bolts, nut, sealing gasket, partition plate, anchor bolt and other basic components.

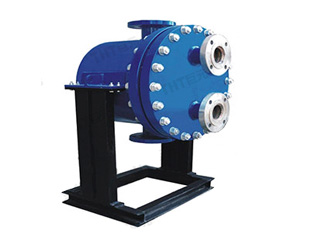

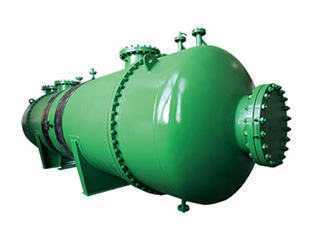

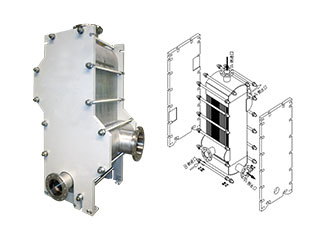

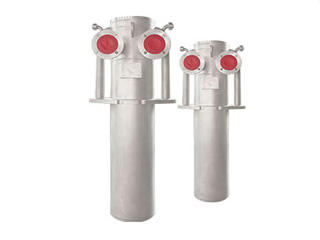

Plate-shell heat exchanger is a patented product of THT, which is manufactured by welding method.The round plate-shell heat exchanger consists of plate bundle, shell, flat cover, equipment flange, support and so on. Plate and shell heat exchanger is a kind of heat transfer equipment between plate heat exchanger and shell and tube heat exchanger, which solves the pressure and temperature limitation of plate heat exchanger, overcomes the disadvantages of large volume and low heat transfer efficiency of shell and tube heat exchanger, and combines the advantages of the two kinds of heat exchangers.

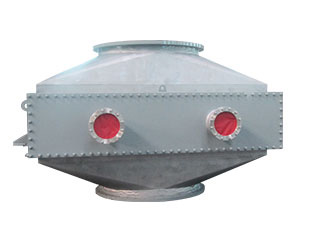

Flue gas waste heat exchanger mainly consists of heat exchange tube bundle and bellows. The heat exchange tube bundle is composed of H-shaped finned tube, tube box, inlet and outlet tube mouth, side beam, u-shaped bend tube segment, bundle support beam and other components. The bellows have a tapered variable diameter transition structure and an internal gas deflector.
Sewage treatment plate heat exchanger is the front-end product of sewage source heat pump system. It is mainly used to extract the heat from urban primary sewage, industrial waste water, slag washing water, printing and dyeing waste water in winter, through intermediate water exchange transfer to the heat pump unit, through the heat pump unit to the building heating; In summer, heat from inside the building is transferred to the sewage, which ACTS as a cooling effect.

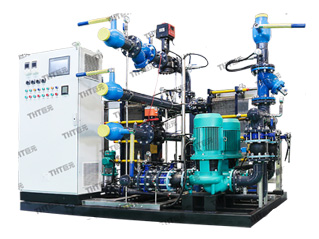

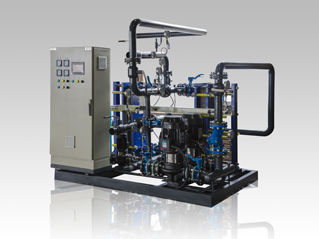

THT intelligent heat exchange unit is an integrated heat exchange device consisting of heat exchanger, water pump, filter, electric regulating valve, sensor, controller, frequency converter, local instrument, pipeline and control system. The constant pressure system, frequency conversion flow control system, calorimeter, flow meter and computer network communication control system are added to form a complete intelligent heat exchange station. This product has applied four patented technologies including heat exchanger and assembly process.

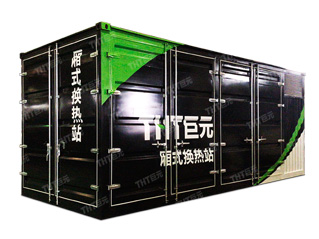

THT box type heat exchange station is based on THT intelligent heat exchanger unit as the core equipment. It is equipped with a purpose made box which is built into a system solution with all functions of the whole heat exchange station, which is an important management module of urban central heating system.

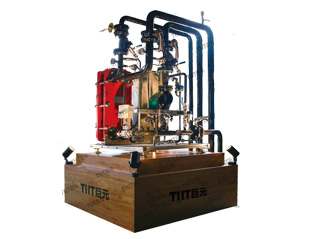

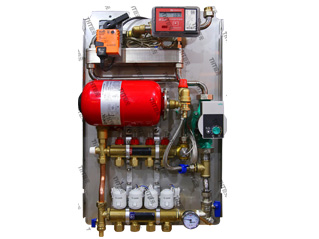

THT wall-mounted building unit to achieve distributed heating, energy saving and consumption reduction system solutions; Set heating and domestic hot water system in one, the use of heat more fully; It can adjust the temperature intelligently with the change of outdoor environment, indoor and time. Modular design and manufacturing, integrated assembly; Applicable conditions: family, villa, small site (below 500㎡)
Realize the system solution of decentralized heating, energy saving and consumption reduction; Set heating and domestic hot water system in one, the use of heat more fully; It can adjust the temperature intelligently with the change of outdoor environment, indoor and time. Modular design and manufacturing, compact and delicate structure, long service life, easy installation and maintenance; Insulation, quiet design, more stable operation of equipment.
THT plate type evaporator is a kind of heat exchanger with two plates welded by laser welding along the sealing groove to form a plate pair, sealing the plate pairs with a gasket, and clamping them in the form of superposition between the fixed pressing plate and the moving pressing plate.Mainly used in ammonia refrigeration, sulfuric acid, caustic soda, petrochemical, metallurgy, machinery, pharmaceutical, food and other industrial fields.
THT plate type condenser is a heat exchanger with two plates welded together along the sealing groove by laser welding to form a plate pair, the plate pair is sealed with a gasket and sandwiched between a fixed plate and a movable plate in the form of superposition.
Mainly used in ammonia refrigeration, sulfuric acid, caustic soda, petrochemical, metallurgy, machinery, pharmaceutical, food and other industrial fields.
A couple of plates is laser welded with o-ring at port holes, between the welded plate pairs the channel is sealed by rubber gasket and clamped in the form of superposition between a fixed clamping plate and a movable clamping plate, thus semi-welded plate heat exchanger can be used for higher pressure by two times to conventional plate heat exchanger.

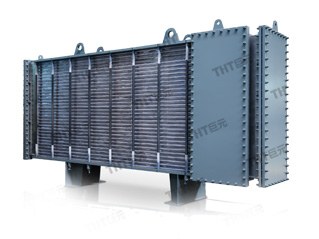

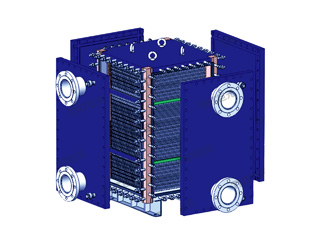

The plate and frame heat exchanger belongs to the welded plate heat exchanger, the heat transfer element of the product is plate, which combines the advantages of plate heat exchanger, has the advantages of high heat transfer efficiency, compact structure, high temperature resistance, good sealing performance, safety and reliability.Suitable for gas-gas, vapor (gas) liquid and liquid-liquid heat transfer conditions. Especially suitable for plate heat exchangers limited by special media with high temperature and high pressure.The reasonable matching of heat transfer efficiency and resistance loss is ensured by the reasonable setting of flow path.
Plate and frame heat exchanger is a patented product of THT company (patent no. : 200520127761.x), belonging to welded plate heat exchanger.HBL plate and frame heat exchanger with detachable tube box, the structure of the plate is herringbone corrugated plate, it is the second upgrade of the product, the plate is vertical setup, the product structure is vertical installation.

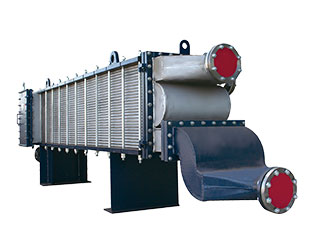

THT fully welded wide channel plate heat exchanger is a patented product with independent intellectual property rights. It adopts the combined mode of wide and narrow channel, wide channel for material and narrow channel for cooling medium. Different channel spacing can be designed and manufactured according to different operating medium parameters. It has been successfully applied in alcohol, alumina and other industries, operating process medium such as fermentation mash, mash, aluminum hydroxide slurry; it has the advantages of high heat transfer efficiency, long service life and convenient maintenance.
THT main pump lubricating oil cooler is the supporting equipment of nuclear power plant, its function is to cool the lubricating oil system medium, to ensure the safe operation of the main pump of nuclear power plant.
According to the special constraint conditions of nuclear power reactors, such as pressure, temperature resistance, energy saving, safety and external size, our technology research and development center has independently developed and creatively adopted key technologies such as bubble-shaped protruding structural plates, circular pressure-bearing shells, pure reverse heat transfer and laser welding.
Plate-shell heat exchanger is a patented product of THT company (patent no. : ZL 2012202252592), which is manufactured by welding method.
Plate and shell heat exchanger is a kind of heat transfer equipment between shell and tube heat exchanger and plate heat exchanger.

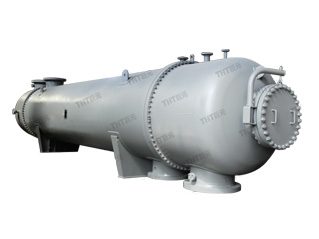

Shell and tube heat exchanger is an important equipment in the process of oil refining, chemical industry, electric power and other industries. It is not only the main equipment in the process, but also the main means to reduce energy consumption and cost. Therefore, the technology level of shell and tube heat exchanger is one of the main indicators of the advanced degree of refinery.
LIANYI RUBBER has more than 20 years of experience to produce and develop various high-performance PHE gaskets for all plate heat exchangers. With one of the largest curing presses in China featuring a work platen size of 4500mm by 1700mm, we operate 36 sets of facilities producing 1.5 million gaskets annually, single plate area from 0.01 to 4 m2 for any types and models of plate heat exchangers. With the backing of the years’ experience of designing and manufacturing to OEM and aftermarket business Lianyi Rubber has grown into a leading supplier for more than 100 plate heat exchanger manufacturers at home and abroad.

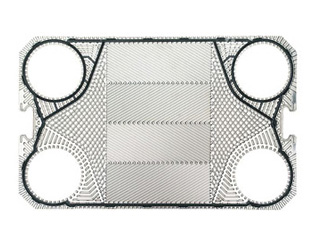

THT Heat Transfer Technology, Inc. mainly engaged in heat exchange products research and development, design and manufacture. Except complete PHE produsts we also supply various THT plates for CKD and maintenance business. With the 40000 tons press and high precision moulds in integral blanking and one press forming THTcan produce more than 80 differnt kinds of corrugated high efficient heat transfer plates, and the consistence,unitform and precision of the plates are guaranteed.

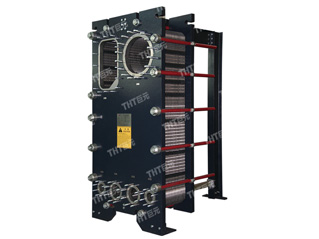

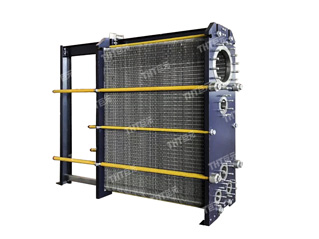

The detachable plate heat exchanger belongs to the dividing wall type heat exchanger, it has high heat transfer efficiency, small resistance loss, compact construction, sensitive temperature control, easy change of required capacity, convenient mounting and dismounting, long working life etc.
Every year to provide customers with 10000 sets of selection scheme and 1500 sets of successful application case of heat exchange unit, THT standard is higher than the national standard. Configuration standardization and structure standardization: according to our company’s years of practicethe best cost-effective configuration and structure have been refined under high quality.
