Plate and Frame Heat Exchanger
  • Plate and Frame Heat Exchanger

  • Plate and Frame Heat Exchanger

0086-29-85200606
sales@guphe.com

Share >

Product Description

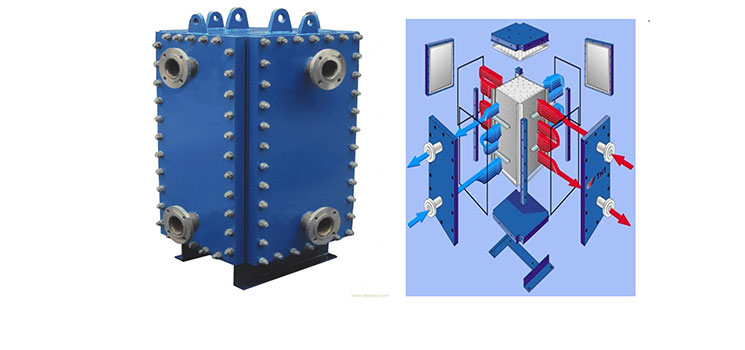

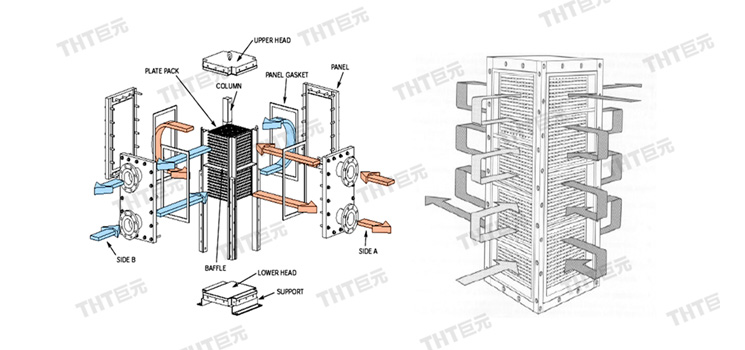

Plate and frame heat exchanger is a patented product of THT (patent no. : 200520127761.x), belonging to a type of welded plate heat exchanger. It is composed of plate pair, side plate, clamping plate, column, bolts, nut, sealing gasket, partition plate, anchor bolt and other basic components. THT series plate and frame heat exchanger integrates the international advanced heat transfer technology into one, strictly implements the NB/T47004 standard and the pressure vessel standard, and can implement the American petroleum institute (API662) and American society of mechanical engineers (ASME) standards as required by users, with the international advanced technology and quality.

Technical Parameters
Maximum heat exchange area: 800m²
Maximum design pressure: 2.5MPa
Plate thickness ≥0.8mm
Maximum installed area per unit: 600m²

Product Features
High heat transfer coefficient and small resistance loss; Strong adaptability of working conditions, it can be flexibly set up flow path combination according to different process requirements;Compared with brazed plate heat exchanger, it has better cleaning performance. High temperature and pressure resistance, suitable for special media; Smaller footprint.

Product Superiorities
It has the characteristics of high heat transfer coefficient and low pressure drop. So, that the equipment in use not only to achieve the process heat transfer performance, but also to save a lot of operating costs.
