BKY Type Welded Plate Heat Exchanger
  • BKY Type Welded Plate Heat Exchanger

0086-29-85200606
sales@guphe.com

Share >

Product Description
Plate-shell heat exchanger is a patented product of THT Company (patent no. : ZL 2012202252592), which is manufactured by welding method.

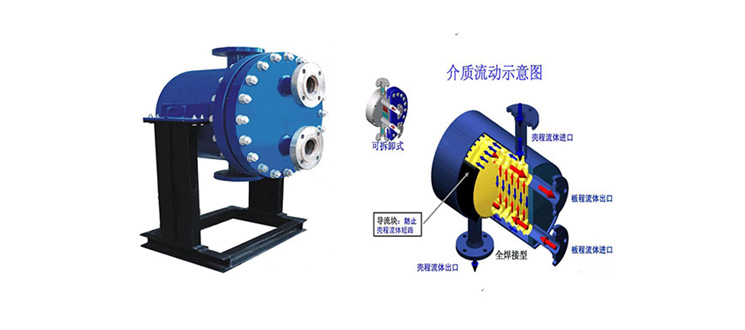

The round plate-shell heat exchanger consists of plate bundle, shell, flat cover, equipment flange, support and so on. Plate and shell heat exchanger is a kind of heat transfer equipment between plate heat exchanger and shell and tube heat exchanger, which solves the pressure and temperature limitation of plate heat exchanger, overcomes the disadvantages of large volume and low heat transfer efficiency of shell and tube heat exchanger, and combines the advantages of the two kinds of heat exchangers.

Technical Parameters
Design pressure: P≤5.0MPa
Maximum pressure-bearing ≤ 6.5Mpa
Design temperature: -70~400°C
Plate thickness: 0.7~1.2mm
Plate material: austenitic stainless steel, dual-phase steel, hastelloy, titanium, nickel, etc

Product Features
High heat transfer efficiency, high pressure and heat resistance, good sealing performance, safe and reliable and compact structure.

Product Superiorities
Plate as a heat transfer element, by a number of plate pairs after welding to form two or more than two channels, to achieve a number of medium heat transfer performance requirements, it is a new type of high-efficiency energy-saving heat exchange equipment.
